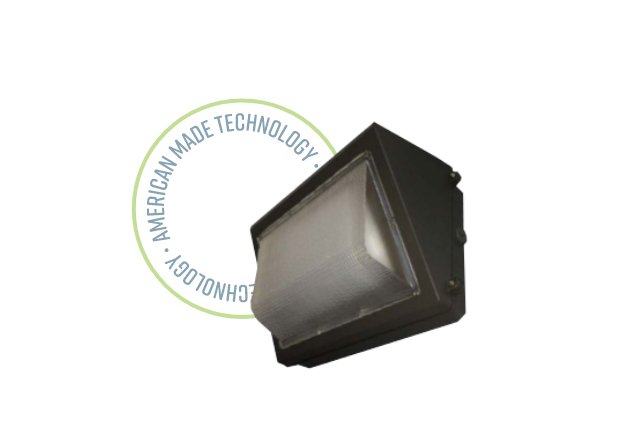

Wall Pack
The Wall Pack exhibits top-of-class optical performance in a robust, space-efficient casing. Customers have installed our Wall Pack in stairways, tunnels, alleyways, building perimeters, security walls, overpasses, and parking garages. The compact form factor allows for a wide range of use cases.
STANDARD FEATURES
- Dimmable 1-10V
- Warrantied in the USA
- Toxin-Free Paint
- Wet Location Rated
- Photocell Sensors
- Temperature Range: -40°C - 40°C
- Weather Resistant Coating
- 10 Year Warranty
Options
- Backup Battery
- Motion Sensors
- 347-480V Drivers Available
Finish
Bronze
Custom
Quality Workmanship
Optics
The Wall Packs lead their segment for optical performance. With CRI over 80 across standard offerings of CCT 4000K and 5000K, these fixtures offer excellent performance over a broad band of application requirements. The lens is clear glass, carefully fitted for uniform light distribution. Output is tuned for a superior balance of performance and visual comfort.
Electrical
Standard input voltage is 120-277V, and 347-480V drivers are available on all units. Luminous efficiency is 117 Lm/W or higher with models available in 28W, 40W, 60W, and 90W.
Construction
The Wall Pack housing is precision manufactured from heavy-wall, die-cast aluminum. Thermal management is integral to the design and our heat sinks facilitate excellent thermal transfer, including at temperatures over 40°C. The back plate contains knockout plates for the installation of add-ons. The Wall Pack is tested for use in wet locations. Now constructed with glass lens and included photocell sensors.
Mounting
Convenient, modular design means the Wall Pack may be mounted to nearly any vertical surface for secure, reliable, illumination.
Sample Order: WPDZ-40-50-G3
| Series | Wattage | CCT | Voltage | Dimming | Finish Color | Generation | Options |
|---|---|---|---|---|---|---|---|
|
WPDZ=Wall Pack |
-28 = 28W -40 = 40W -60 = 60W -90 = 90W |
40 = 4000K 45 = 4500K 50 = 5000K |
Blank = 100-277V V = 347-480VAC |
Blank = 1-10V Dimming ND = Non-Dimming |
Blank = Standard |
Blank = Current Generation -G2 = Generation 2 -G3 = Generation 3 |
LOD = Bi-Level Sensor MPC = On/Off Sensor EKS = Photocell Sensor EM = Emergency Backup Battery |
| Color | Housing | Lens Type | Certification | Warranty |
|---|---|---|---|---|
|
Bronze |
Die Cast Aluminum |
Glass |
ETL |
10 Years |
Performance Data
| Part No. | Watts (W) | Input Voltage (VAC) |
Efficacy (Lm/W) | Lumens(Lm) | CRI | CCT (K) | PF | THD | L70 (Hours) | Dimensions in Inches (L*W*H) |
|---|---|---|---|---|---|---|---|---|---|---|
| WPDZ-28-40 | 28 | 120-277 | 127 | 3556 | 80+ | 4000 | >0.9 | <20% | 94,000 | 14.29*7.68*9.06 |
| WPDZ-28-50 | 28 | 120-277 | 130 | 3640 | 80+ | 5000 | >0.9 | <20% | 94,000 | 14.29*7.68*9.06 |
| WPDZ-40-40 | 40 | 120-277 | 125 | 5000 | 80+ | 4000 | >0.9 | <5% | 74,000 | 14.29*7.68*9.06 |
| WPDZ-40-50 | 40 | 120-277 | 128 | 5120 | 80+ | 5000 | >0.9 | <5% | 74,000 | 14.29*7.68*9.06 |
| WPDZ-60-40 | 60 | 120-277 | 134 | 8040 | 80+ | 4000 | >0.9 | <13% | 74,000 | 18.31*9.61*9.06 |
| WPDZ-60-50 | 60 | 120-277 | 137 | 8220 | 80+ | 5000 | >0.9 | <13% | 74,000 | 18.31*9.61*9.06 |
| WPDZ-90-40 | 90 | 120-277 | 117 | 10530 | 80+ | 4000 | >0.9 | <13% | 74,000 | 18.31*9.61*9.06 |
| WPDZ-90-50 | 90 | 120-277 | 120 | 10800 | 80+ | 5000 | >0.9 | <13% | 74,000 | 18.31*9.61*9.06 |

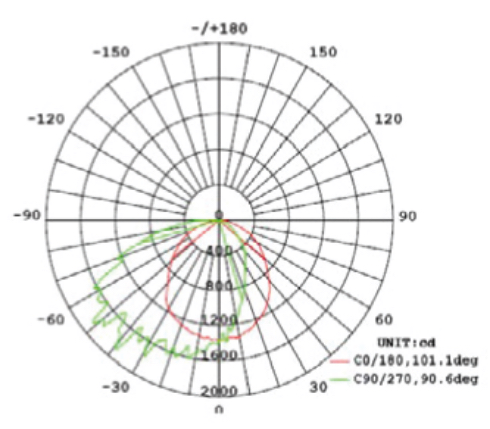

Diagrams
